Laboratory FTIR Spectrometer 7800–350 cm⁻¹ – Competitive Price

Product Overview

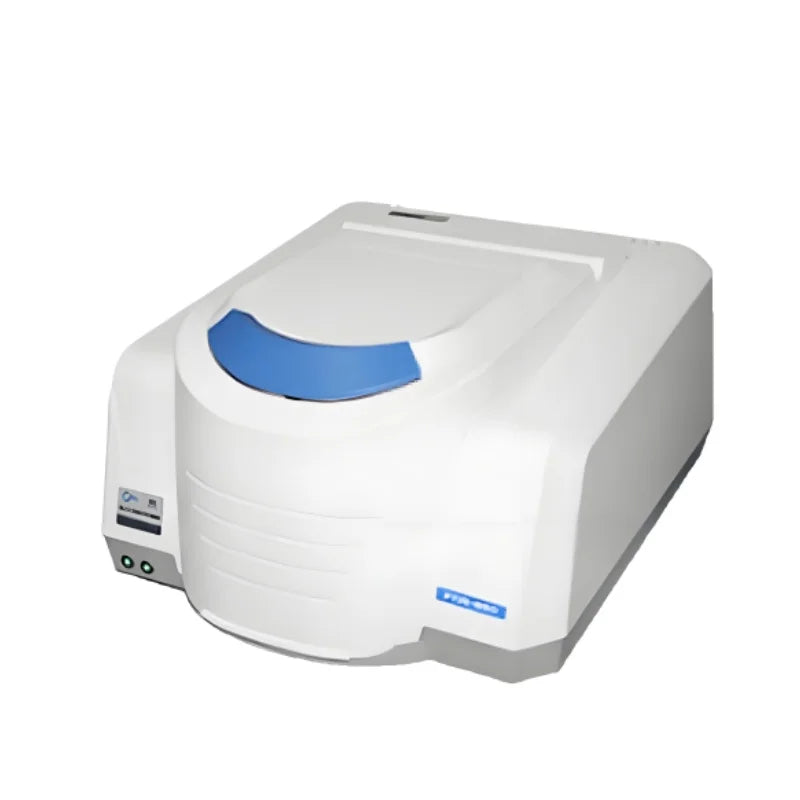

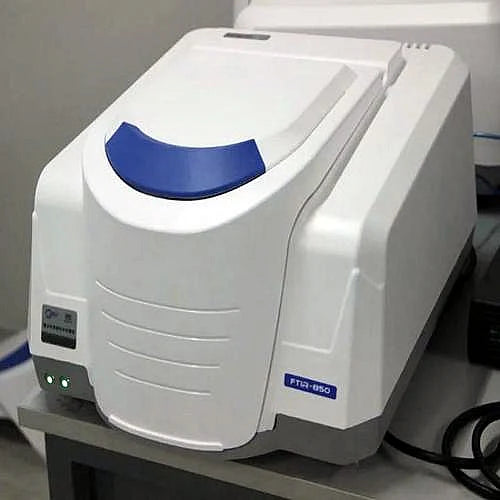

The FTIR-850A Fourier Transform Infrared Spectrometer is a high-resolution analytical instrument designed for demanding laboratory applications. Covering a wide spectral range of 7800–350 cm⁻¹ with a maximum resolution of 0.5 cm⁻¹, it delivers precise, stable and repeatable results across research, quality control and advanced materials analysis.

Engineered for long-term reliability, the FTIR-850A combines dynamic digital interferometer adjustment, a sealed optical system and a high-energy infrared source to ensure consistent performance in both routine and specialist environments.

Key Features

High Resolution Performance
Maximum resolution of 0.5 cm⁻¹, suitable for detailed spectral analysis and complex sample identification.

Advanced Stability System
Digital dynamic adjustment (130,000 adjustments per second) maintains optical alignment and preserves peak shape during continuous operation. The maintenance-free design eliminates the need for manual optical adjustment.

Enhanced Moisture Protection
Fully sealed interferometer and detector system with large-capacity desiccant chambers to reduce humidity impact and extend component lifespan.

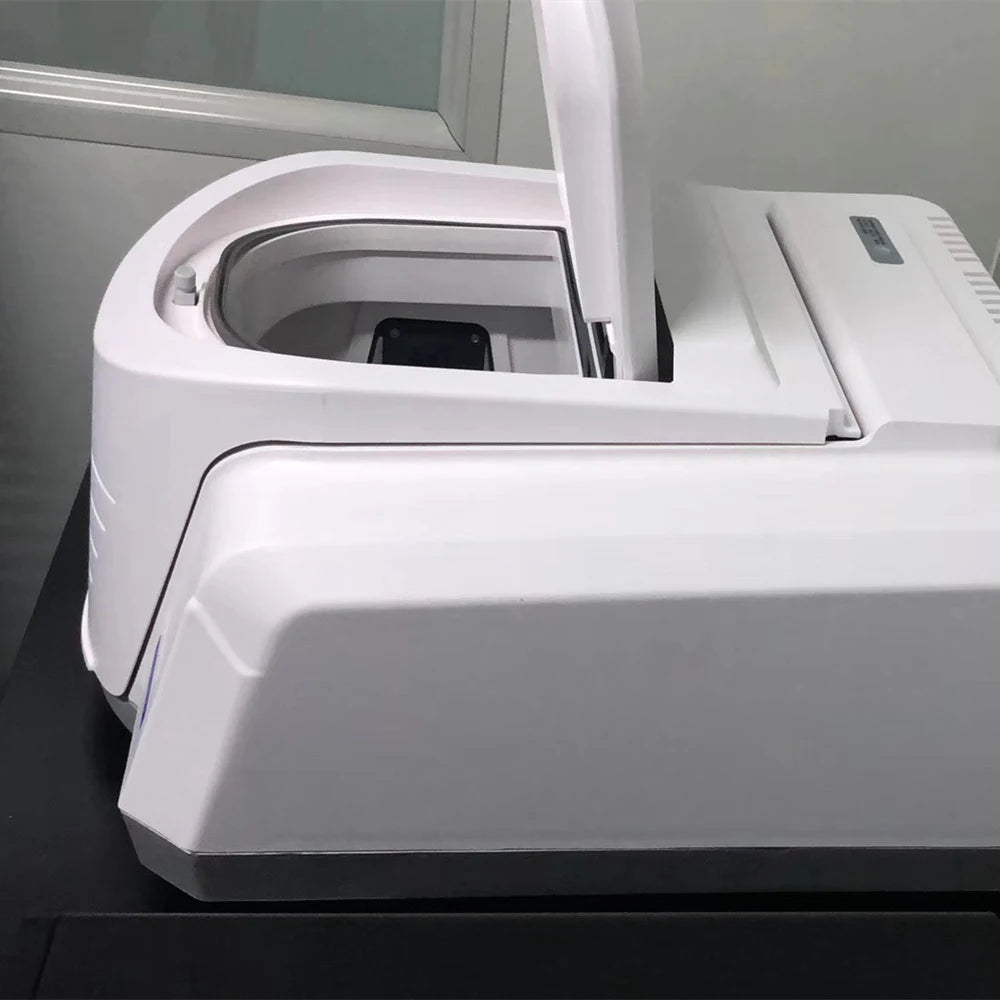

Expandable Sample Compartment
Spacious sample chamber compatible with a wide range of accessories including ATR, specular and diffuse reflection modules, gas cells, liquid cells and polarisation accessories.

High-Performance IR Source
High-energy ceramic infrared source with excellent thermal insulation and long operational life, ensuring stable and uniform radiation.

Technical Specifications

• Spectral Range: 7800–350 cm⁻¹

• Resolution: 0.5 cm⁻¹

• Wavenumber Accuracy: 0.01 cm⁻¹

• Detector: High-sensitivity DLATGS

• Beam Splitter: Ge-coated KBr

• Peak Noise: < 2.2 × 10⁻⁵ AU (1 min scan, 4 cm⁻¹ resolution)

• Linearity: < 0.1%

• A/D Converter: 24-bit

• Data Transmission: USB 2.0

• Support System: Windows XP/7/8

• Dimensions: 543 × 455 × 248 mm

• Power Supply: AC 220V / 50Hz

Applications

The FTIR-850A is suitable for:

• Petrochemical analysis

• Organic and polymer chemistry

• Pharmaceutical testing

• Food quality control

• Semiconductor and optical material research

• Academic and industrial laboratories

About the Manufacturer

Manufactured by Jiangxi AIYI Hi-Tech Co., Ltd., a specialist supplier of analytical instruments including spectrometers, chromatographs and laboratory systems, serving global research and industrial markets.

For pricing, configuration options or accessory packages, please contact us for a tailored quotation.
