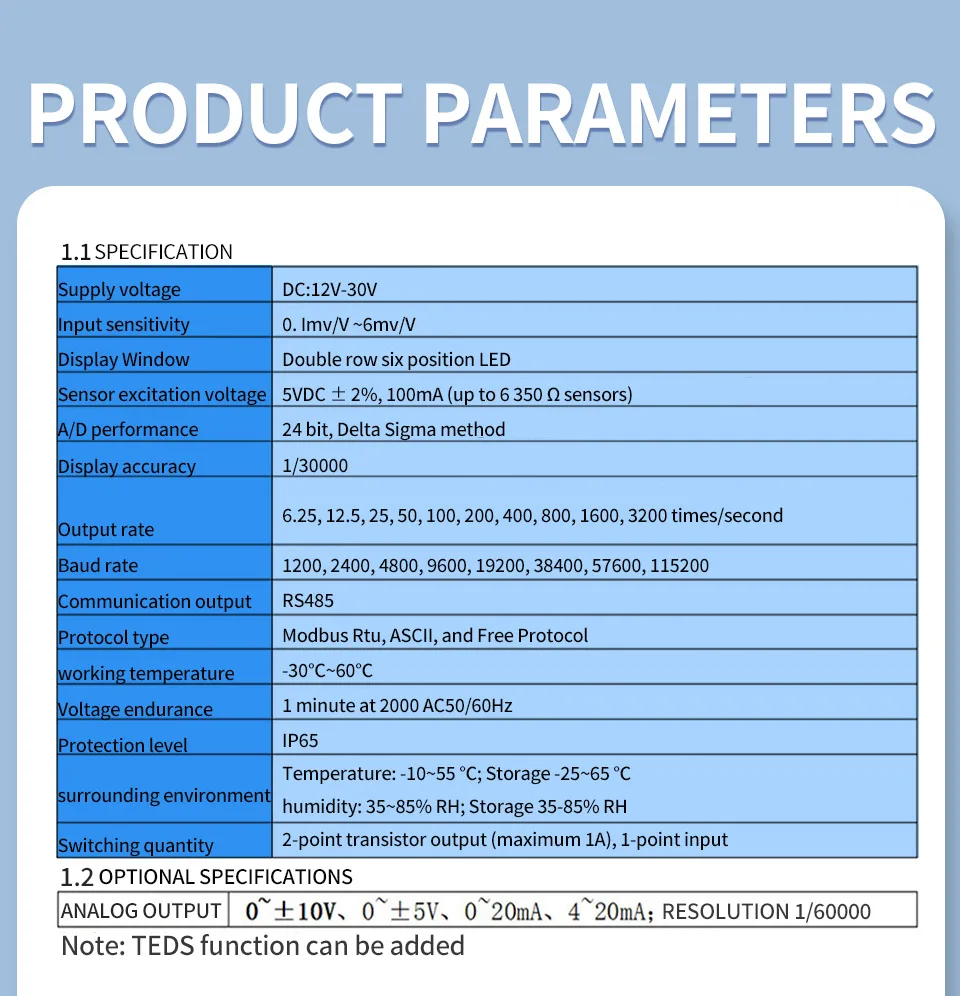

SPECIFICATIONS

A/D performance: 24 bit, Delta Sigma method

Baud rate: 1200,2400,4800,9600,19200,38400,57600,115200

Communication output: RS485

Description: Pull pressure Load Cell,KV-4C Load Cell Indicator

Display Window: Double row six position LED

Display accuracy: 1/30000

Features: Load Cell Indicator

Input sensitivity: 0.lmv/v~6mv/V

Manufacturing Date Code: NONE

Model Number: KV-4C

Mounting Type: Load Cell

Operating Force: Pull pressure

Output: Analog sensor

Output rate: 6.25,12.5,25,50,100,200,400,800,1600,3200 times/second

Place of Origin: Anhui, China

Protocol type: Modbus Rtu,ASCll, and Free Protocol

Sensor excitation voltage: 5VDC+2%,100mA(up to 6 350 Ω sensors

Series: Load Cell Indicator

Supply voltage: DC:12V-30V

Theory: Resistant sensor

Type: Load Cell

Usage: Force sensor

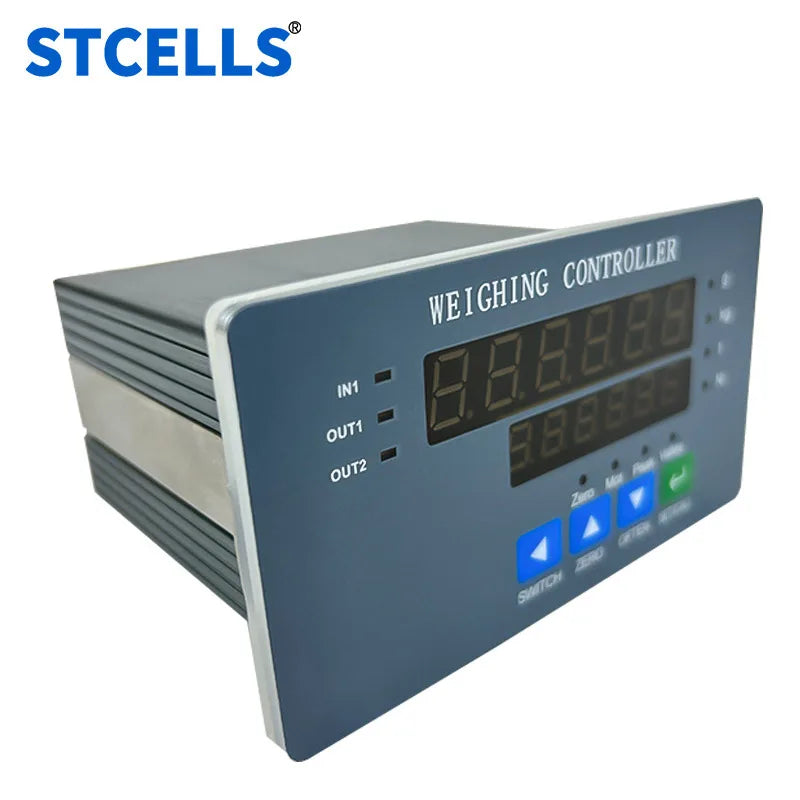

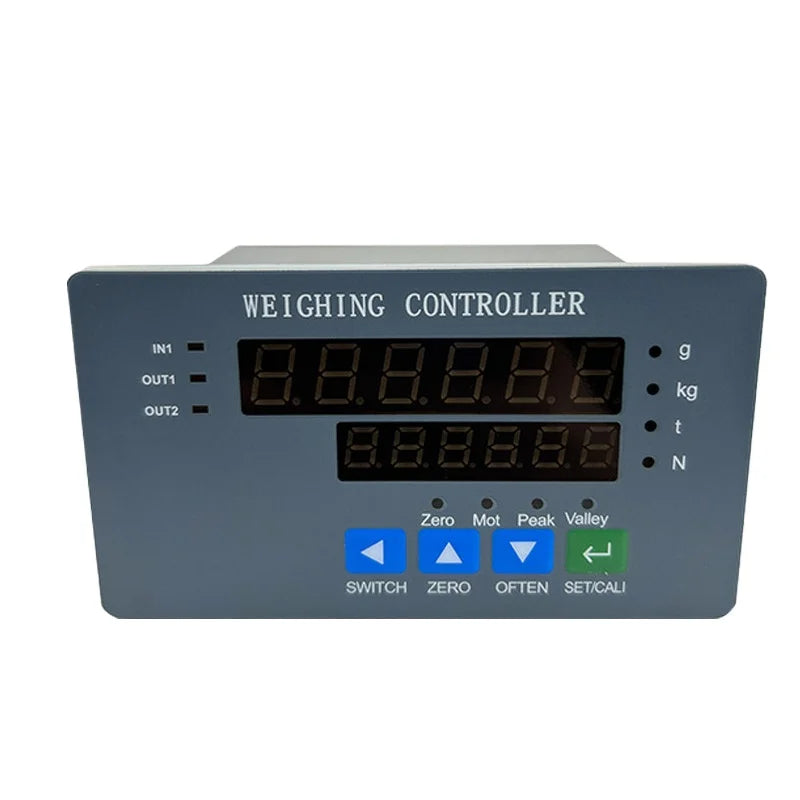

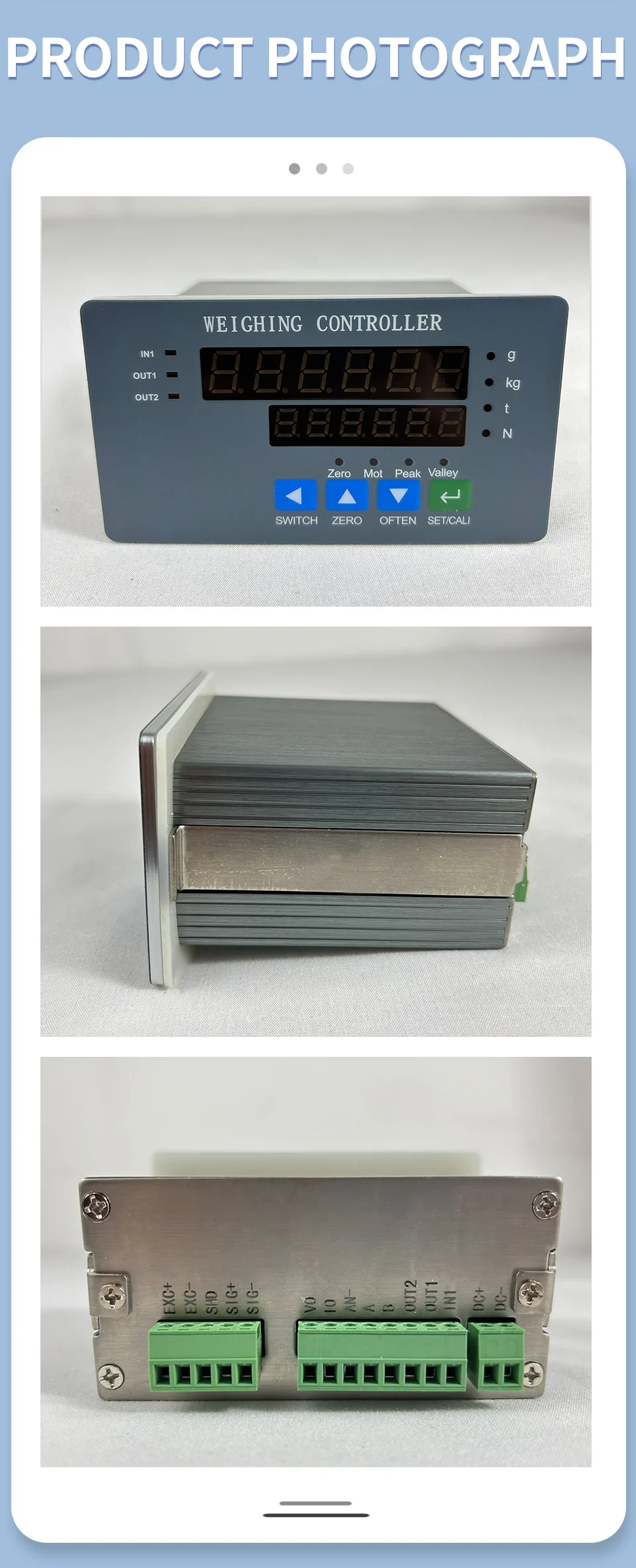

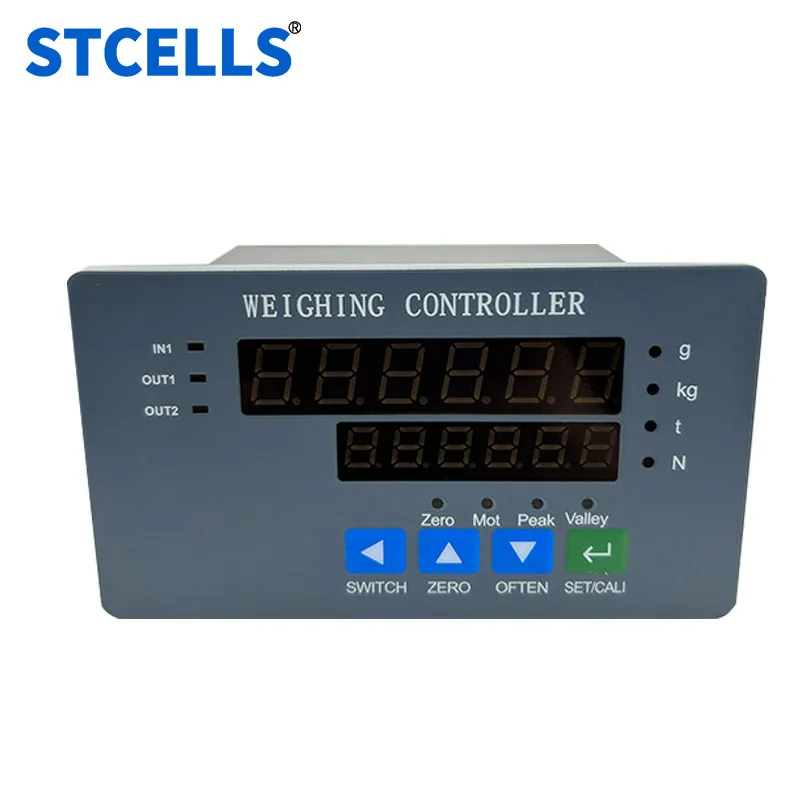

The KV-4C is a high-performance digital load cell indicator designed for industrial weighing systems. Featuring RS232/RS485
communication interfaces, it enables seamless integration with automation systems for real-time data transmission and control.
This compact yet robust indicator delivers high-accuracy measurements for load cells and sensors, making it ideal for applications
in material handling, logistics, manufacturing, and laboratory

Key Highlights

* High-Precision Measurement: Ensures accurate weight data for industrial load cells.
* RS232/RS485 Connectivity: Enables compatibility with PLCs, computers, and automated systems.
* Industrial-Grade Durability: Built to withstand harsh environments (e.g., factories, warehouses).
* Wide Application Range: Suitable for conveyor systems, batching machines, tank weighing, and more.
* User-Friendly Interface: Simplified setup and operation for efficient workflow

Supply voltage	DC:12V-30V
lnput sensitivity	0.Imv/V~6mv/V
Display Window	Double row six position LED
Sensorexcitation voltage	5VDC±2%,100mA(up to 6350 Qsensors)
Display accuracy	1/30000

Why Choose Us

Your Trusted Partner Since 2004
✅ 21+ Years Expertise
Specialized in precision manufacturing with 2000+ global clients across 30 industries.
✅ Certified Quality, Zero Risk
All products comply with OIML/CE/ISO standards, Enjoy 12 months of remote technical guidance
✅ Tailored Solutions
Customize specifications, packaging, and certifications to meet your project requirements.
✅ Fast & Reliable Service
72-hour sample shipping, 24/7 technical support, Video remote tutoring training.

FAQ

Q1: What certifications do your products have?
A: We hold OIML, CE, and ISO 9001 certifications. Additional certifications (e.g., ATEX, RoHS) can be provided upon request.
Q2: How do you ensure product quality?
A: 100% pre-shipment testing with calibration reports.
Q3: Can you match my specific technical parameters?
A: Yes! Send your datasheet. 90% of custom projects are confirmed within 24 hours.
