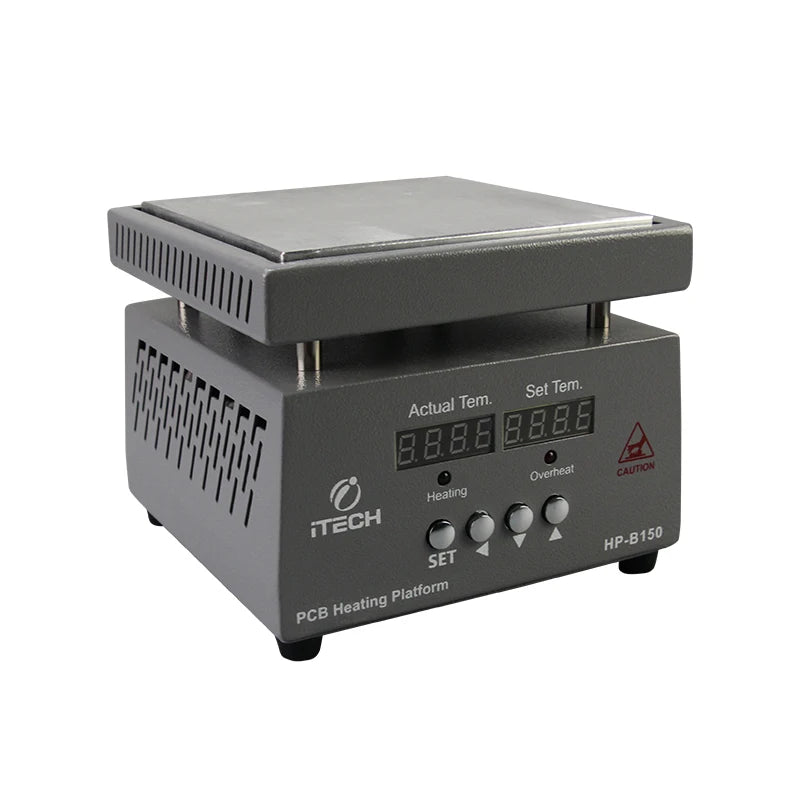

ITECH Digital Temperature Control Heating Platform | 400 W Constant-Temperature Heating Table | 0–400 °C | 150 × 150 mm

The ITECH Temperature Control Heating Platform is a compact, precision-controlled electric heating table designed for PCB preheating, electronics repair, laboratory heating, and experimental applications. Featuring a PID microcomputer temperature controller, it delivers accurate and stable temperature regulation across a working range of room temperature to 400 °C.

Engineered with a thick aluminium heating plate and insulated stainless steel housing, this platform provides efficient heat distribution while protecting internal components and surrounding structures from thermal stress.

Key Features

• High-Precision PID Temperature Control
  Microcomputer-based controller with automatic parameter adjustment and control accuracy up to ±0.2 °C.

• Wide Temperature Range (0–400 °C)
  Suitable for PCB soldering, component rework, and general laboratory heating.

• Thick Aluminium Heating Plate (20 mm)
  Ensures even heat distribution and consistent thermal performance.

• 304 Stainless Steel Thermal Shielding
  Reduces heat radiation to the enclosure, improving energy efficiency and extending component lifespan.

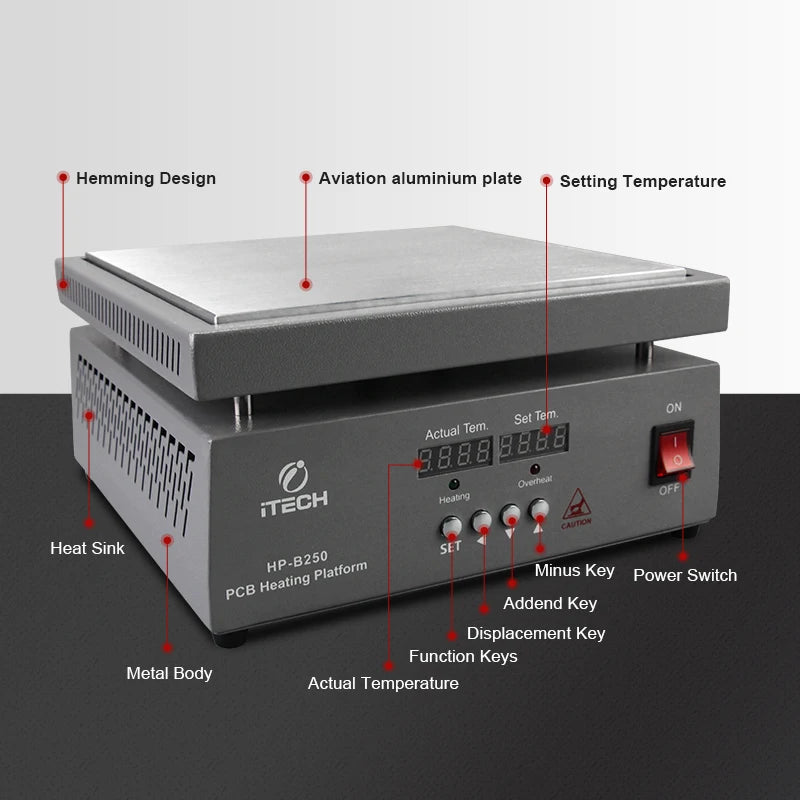

• Digital Dual-Display Interface
  Clear temperature monitoring and set-point display.

• Stable Structural Design
  Stainless steel support pillars maintain platform level alignment during operation.

• Durable Coated Enclosure
  High-temperature baked finish resists discoloration and wear.

Technical Specifications

• Product Name: Temperature Control Heating Platform

• Brand: ITECH

• Power: 400 W

• Voltage: AC 220 V, 50 Hz

• Temperature Range: 0–400 °C

• Control Type: Digital PID controller

• Working Area: 150 × 150 mm

• Dimensions: 230 × 230 × 225 mm

• Material: Aluminium plate + 304 stainless steel housing

• Weight: 4 kg

• Power Source: Electric

• Warranty: 1 year

• Machinery Test Report: Provided

• Video Inspection: Provided

Typical Applications

• PCB preheating and rework

• SMT repair and soldering preparation

• Mobile phone and electronics repair

• Laboratory sample heating

• Adhesive curing and experimental thermal processes

Performance & Durability

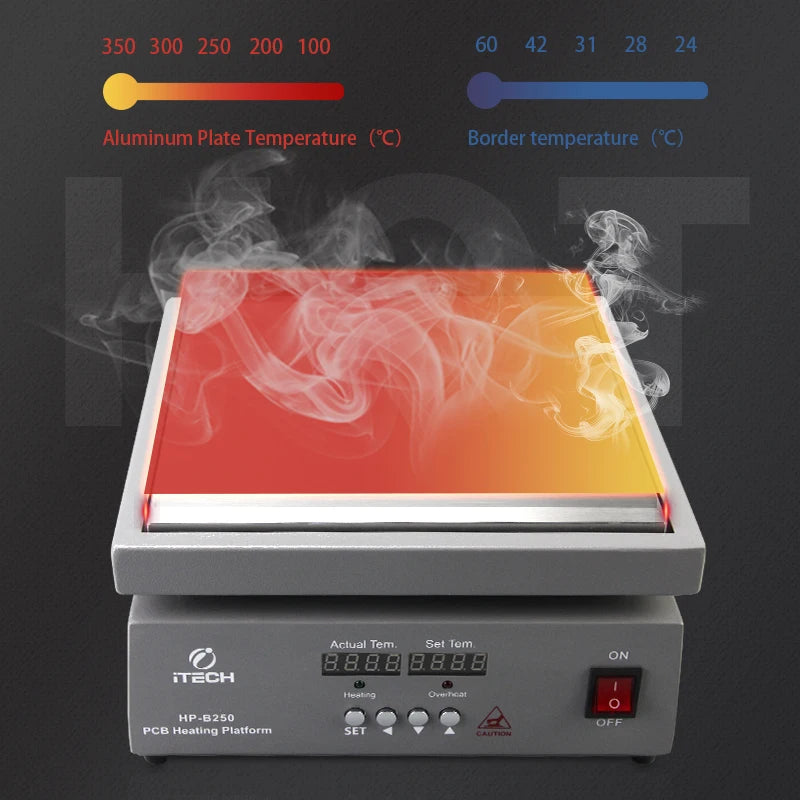

The 20 mm aluminium plate ensures rapid and uniform heat transfer, while internal thermal isolation keeps cabinet temperatures low (approx. 40 °C), extending wiring and component life. The PID system continuously adjusts output to maintain stable temperature, ensuring repeatable process conditions.

Summary

The ITECH 400 W Digital Heating Platform provides reliable, accurate, and energy-efficient heating in a compact footprint. With its robust construction, precision temperature control, and 150 × 150 mm working area, it is well suited to electronics repair workshops, SMT production environments, and laboratory settings requiring controlled surface heating.
