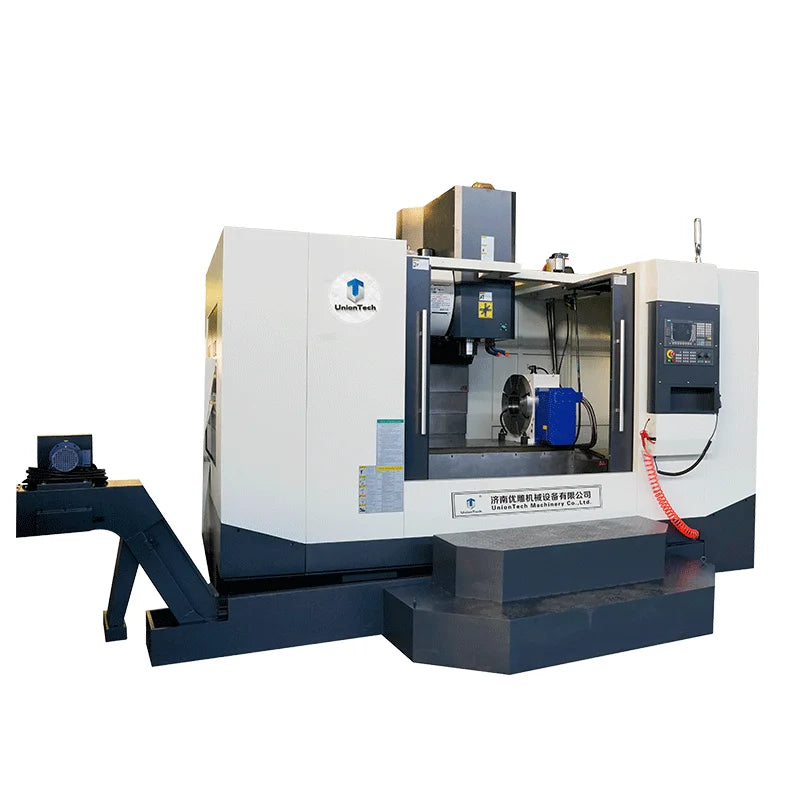

Industrial CNC Vertical Milling Machine VMC 1580 – Heavy-Duty, 4-Axis, Siemens 828D

The UnionTech VMC1580 is a heavy-duty vertical CNC machining centre built for high-productivity industrial manufacturing. With a robust cast iron structure, advanced spindle performance and premium transmission components, this machine is engineered for precision, durability and long-term reliability in demanding workshop environments.

Designed for large component machining, mould production and precision engineering, the VMC1580 delivers strength, stability and consistent accuracy across extended production cycles.

Key Features

• Machine Type: Vertical CNC Machining Centre
• Model: VMC1580
• Brand: UnionTech
• Machining Capacity: Heavy Duty
• Structure: High-rigidity cast iron frame

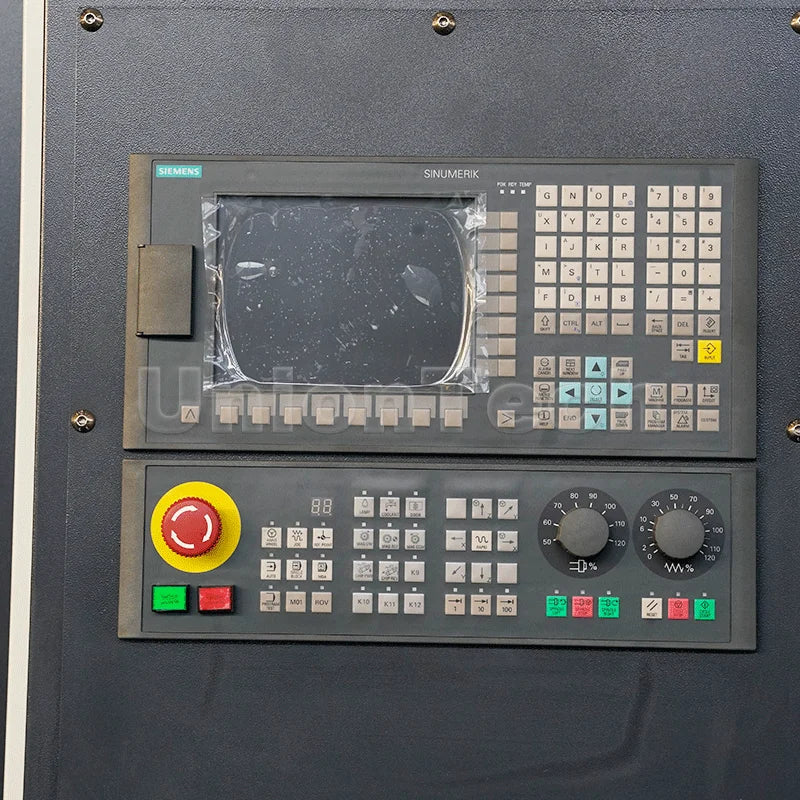

• Control System Options: Siemens / GSK / SYNTEC / FANUC / Mitsubishi
• Voltage: 380V
• Spindles: Single
• Spindle Taper: BT50
• Spindle Power: 11kW mechanical spindle
• Tool Magazine: 24 tools (30 ATC optional)
• Minimum Tool Change Time: 2 seconds
• External Protection: Fully enclosed guarding
• Operation: Automatic

Working Area & Travel

• Table Size: 1500 × 800 mm
• Max. Table Load: 1500 kg
• Working Area: 1500 × 800 × 700 mm
• X-Axis Travel: 1500 mm
• Y-Axis Travel: 800 mm
• Z-Axis Travel: 700 mm

The generous working envelope and high load capacity make the VMC1580 suitable for machining large and heavy workpieces with confidence.

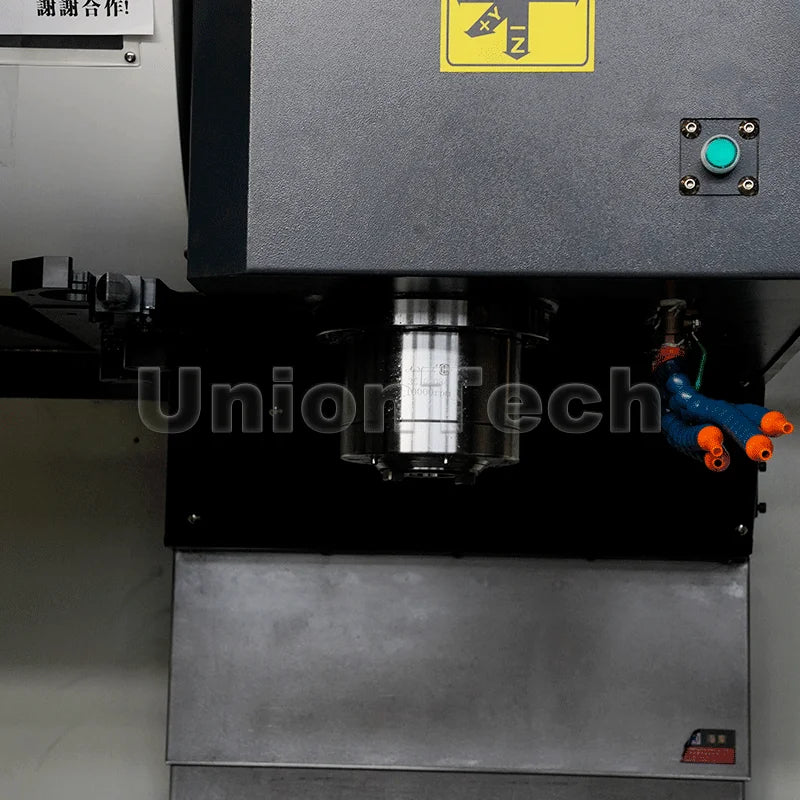

Spindle & Performance

• Spindle Speed Range: 1–8000 rpm
• Rapid Feed Speed: 1–6000 mm/min
• Transmission (X, Y, Z): Japanese NACHI ball screws
• Guide Rails: HIWIN 45 linear guideways on all axes

The combination of precision ball screws and high-quality linear guideways ensures smooth motion control, reduced backlash and excellent surface finish.

Accuracy & Precision

• Positioning Accuracy: ±0.004 mm
• Repeatability: ±0.007 mm

These tolerances provide reliable precision for high-accuracy machining tasks and repeat production.

Construction & Dimensions

• Machine Weight: 13 tonnes
• Dimensions (L × W × H): 4300 × 3200 × 3100 mm
• Place of Origin: Shandong

The heavy cast iron construction minimises vibration and enhances structural stability during high-load cutting operations.

Safety, Efficiency & Productivity

The VMC1580 is designed with a high safety level and fully enclosed protection to ensure safe operation. Its energy-efficient systems and automatic tool-changing capability support flexible manufacturing, reduced downtime and increased overall productivity.

Service & Support

• Warranty: 1 Year
• Machinery Test Report: Provided
• Video Outgoing Inspection: Provided
• After-Sales Service: Engineers available to service machinery overseas

The UnionTech VMC1580 Vertical CNC Machining Centre is a powerful, precise and production-focused solution for manufacturers seeking heavy-duty performance, advanced control flexibility and long-term operational reliability.
