SWL-5T Worm Gear Screw Lift

5-Tonne Mechanical Linear Actuator for Precision Lifting & Positioning

The SWL-5T Worm Gear Screw Lift is a compact, heavy-duty mechanical actuator designed for controlled vertical lifting, lowering, positioning, and load holding in industrial environments. Rated for up to 1,000 kg working load, it combines a worm gearbox with a trapezoidal lead screw to deliver smooth linear motion with excellent positional stability.

Unlike hydraulic systems, the SWL-5T provides precise mechanical control without fluid power, making it ideal for applications requiring accuracy, reliability, and low maintenance.

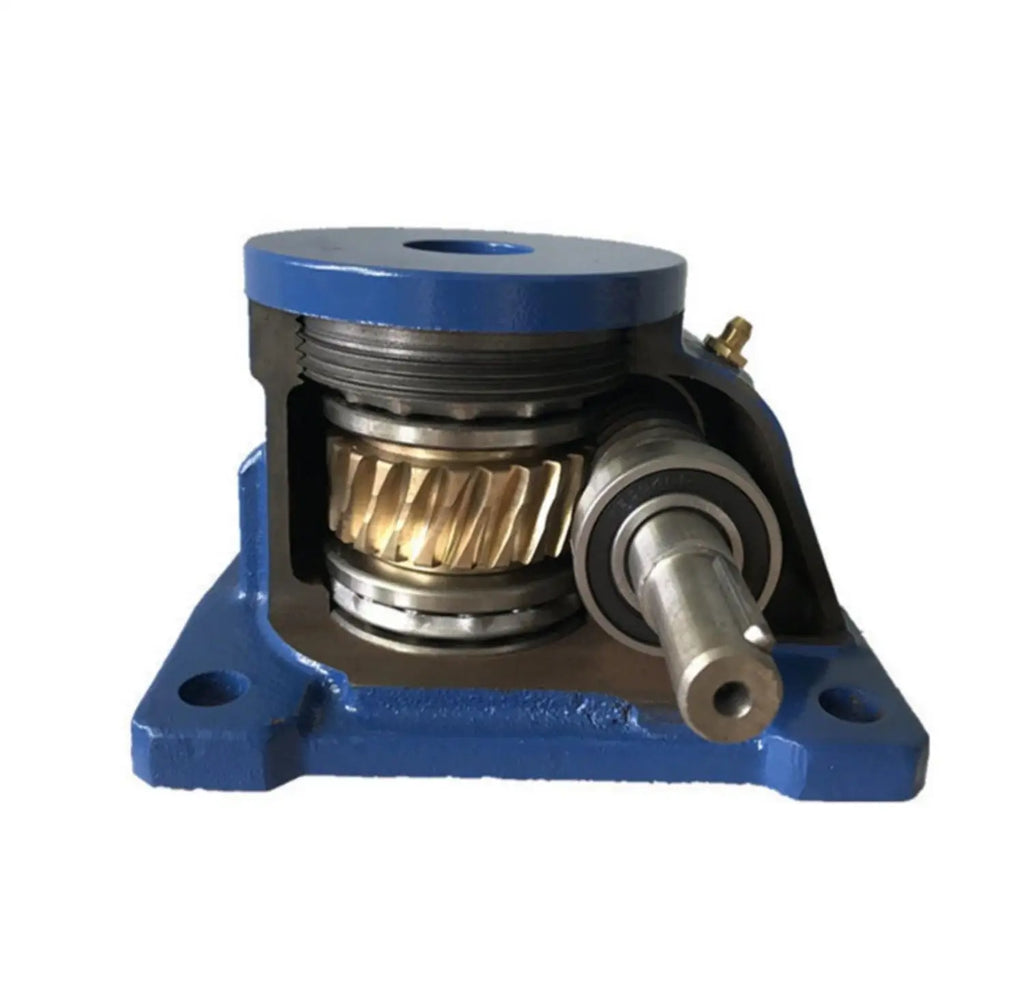

Constructed with a cast-iron housing, copper worm wheel, and hardened steel worm shaft, this unit is engineered for long service life under continuous or intermittent duty.

It can be operated via electric motor or manual handwheel and may be used individually or synchronised in multi-jack lifting systems.

Load Capacity (SWL-5T)

• Rated working load: 500–1,000 kg

• Screw size: Tr40 × 7 mm trapezoidal thread

• Input speed: 1400 rpm

• Typical output speed: ~186 rpm

• Output torque range: 8.86–464 Nm

Designed for accurate height control and stable load retention.

Key Features

• Self-locking worm gear design
  Prevents back-driving under load, maintaining position without additional braking.

• High-strength construction
  Cast iron gearbox (HT250), copper worm wheel (94%), and C45 steel worm ensure durability.

• Selectable reduction ratios
  Available in 6:1 / 12:1 / 24:1, allowing optimisation between speed and lifting force.

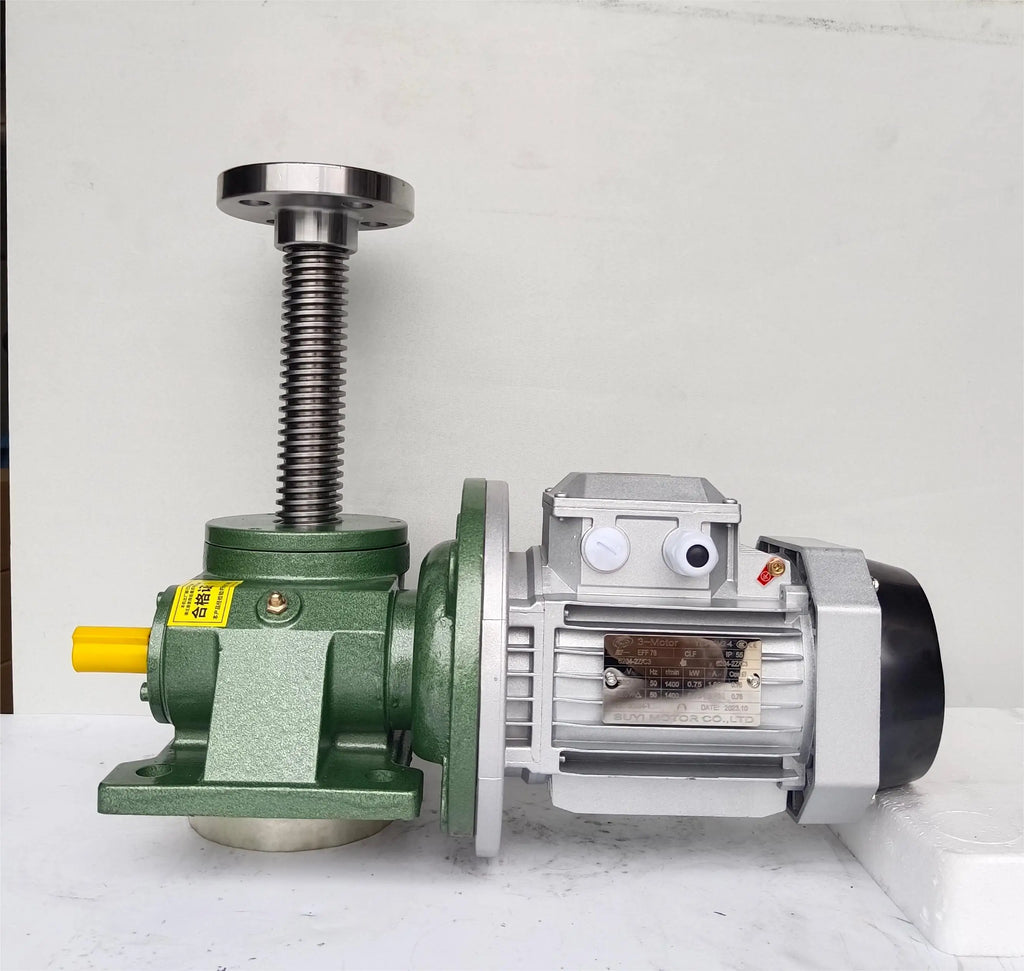

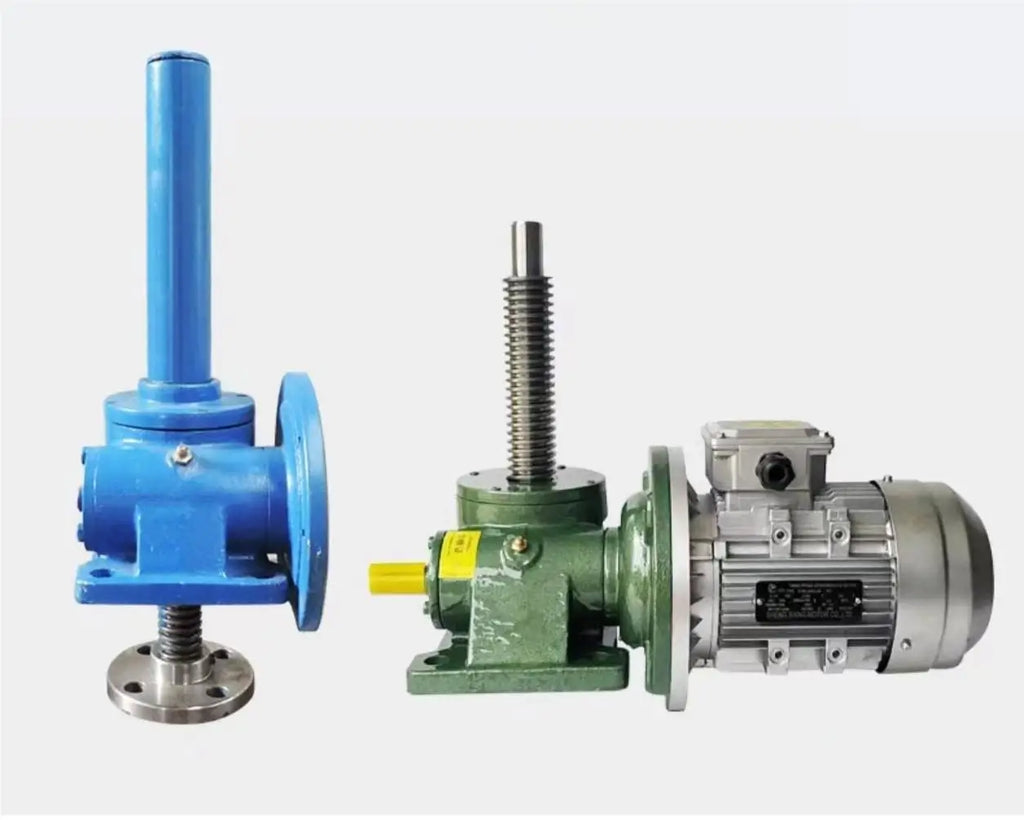

• Motor or manual operation
  Compatible with 0.75–1.5 kW motors, or supplied with handwheel for manual adjustment.

• Customisable stroke length
  Standard screw length: 500 mm
  Longer strokes available on request.

• OEM configuration available
  Custom mounting styles, screw types, anti-rotation guides, motors, covers, and accessories.

Technical Specifications (SWL-5T)

• Model: SWL-5T

• Capacity: 500–1,000 kg

• Gear type: Worm + worm wheel

• Housing material: Cast iron

• Reduction ratios: 6:1 / 12:1 / 24:1

• Motor range: 0.75–1.5 kW

• Structure: Gearbox + mounting base + lifting screw

• Unit size: 222 × 155 × 130 mm

• Weight (without screw): approx. 16.2 kg

• Duty: Continuous / intermittent

Typical Applications

• Machine height adjustment

• Conveyor levelling

• Platform lifting

• Packaging machinery

• Industrial automation

• Agricultural equipment

• Test rigs and bespoke mechanical assemblies

• Energy and mining installations

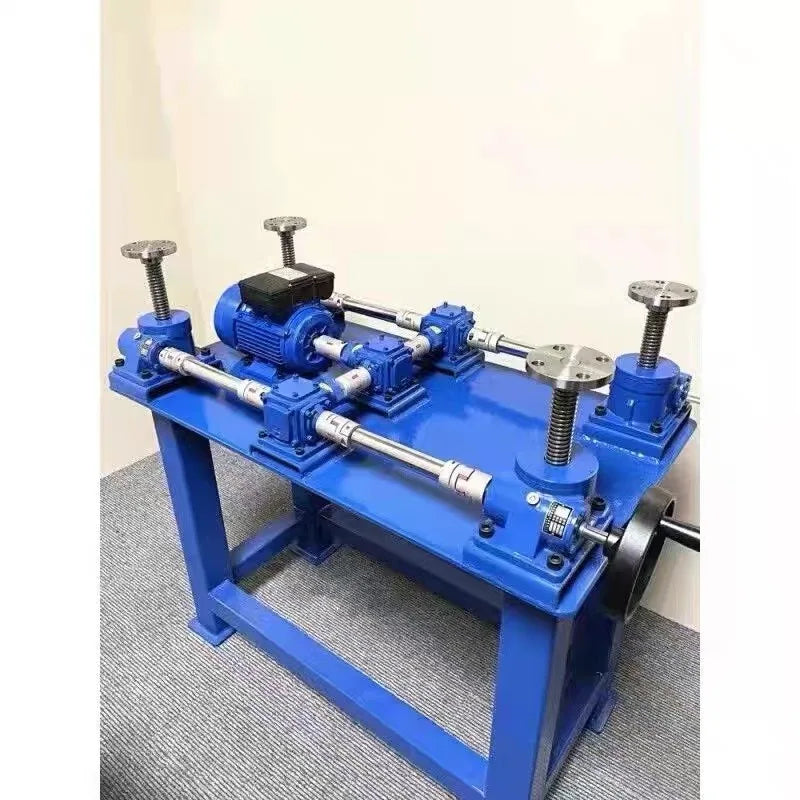

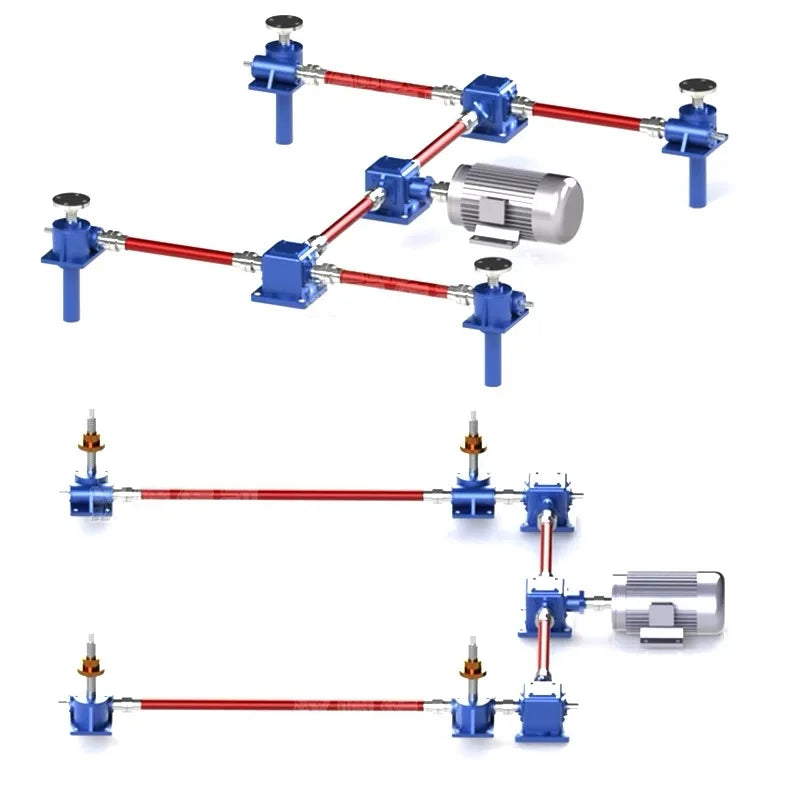

Commonly deployed in multi-jack synchronous lifting systems where precise parallel motion is required.

Optional Accessories

• Electric motor & coupling

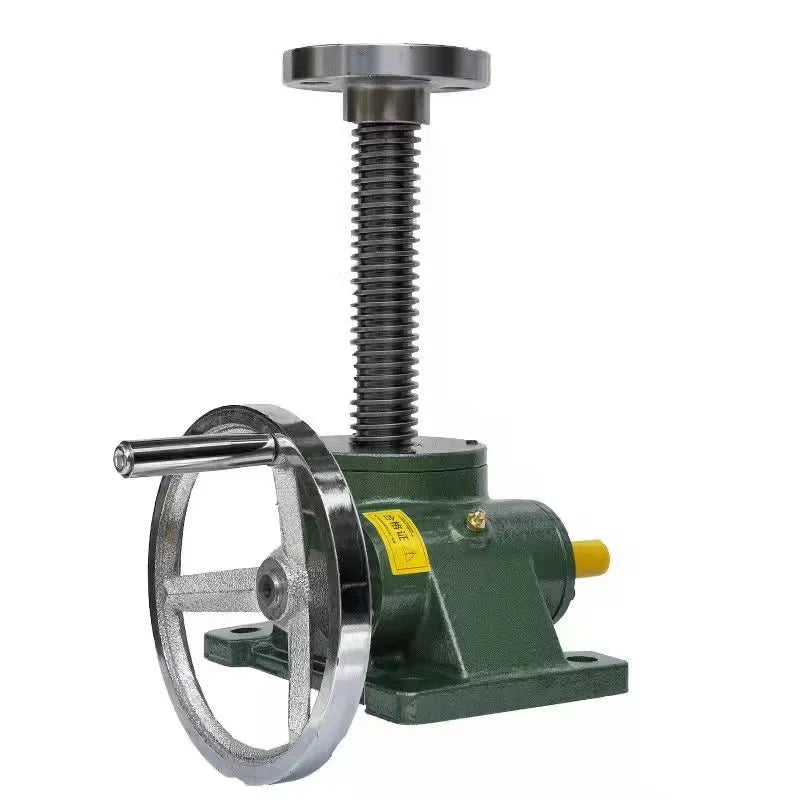

• Manual handwheel

• Anti-rotation guide

• Protective screw cover

• Limit switches

• Custom mounting brackets

• Special screw nuts

Summary

The SWL-5T Screw Lift provides a robust, cost-effective solution for medium-load linear motion tasks. Its worm-gear architecture offers inherent load holding, while the modular design allows easy integration into custom machinery and automation systems.

An ideal choice for engineers seeking accurate lifting, positioning, or thrust generation without hydraulics.
