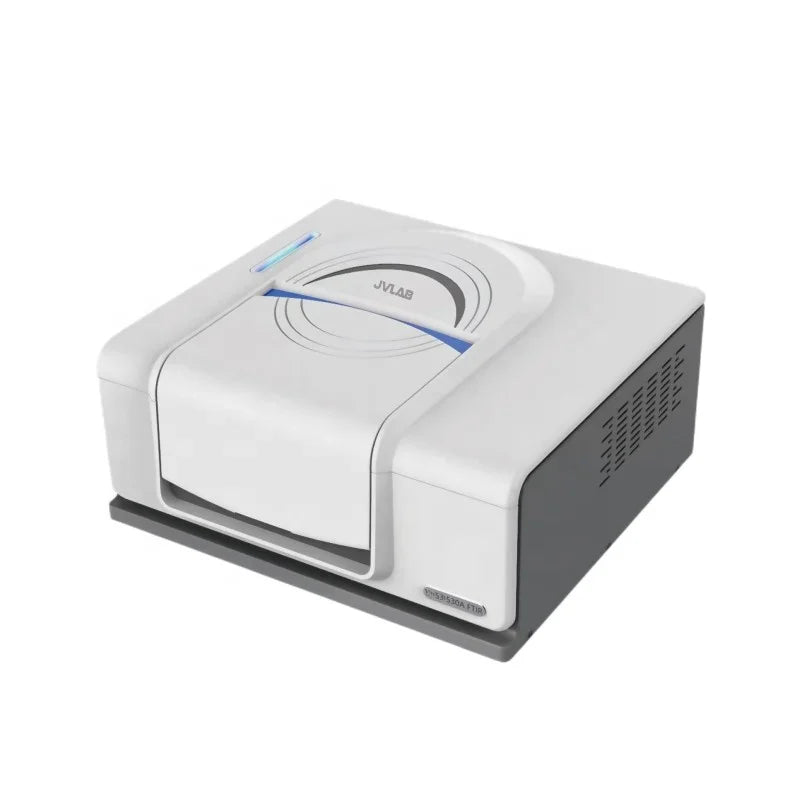

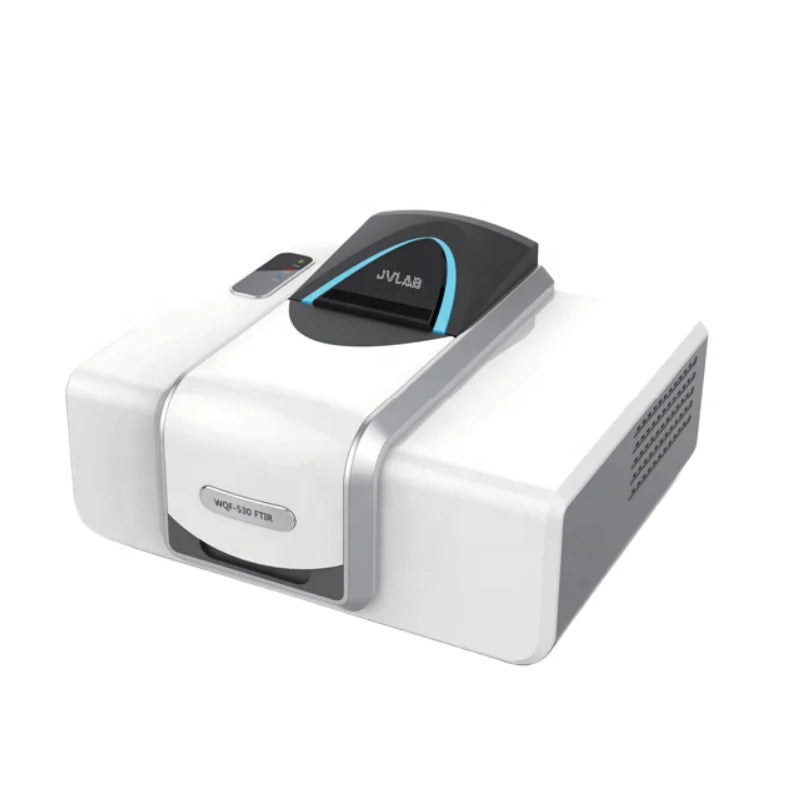

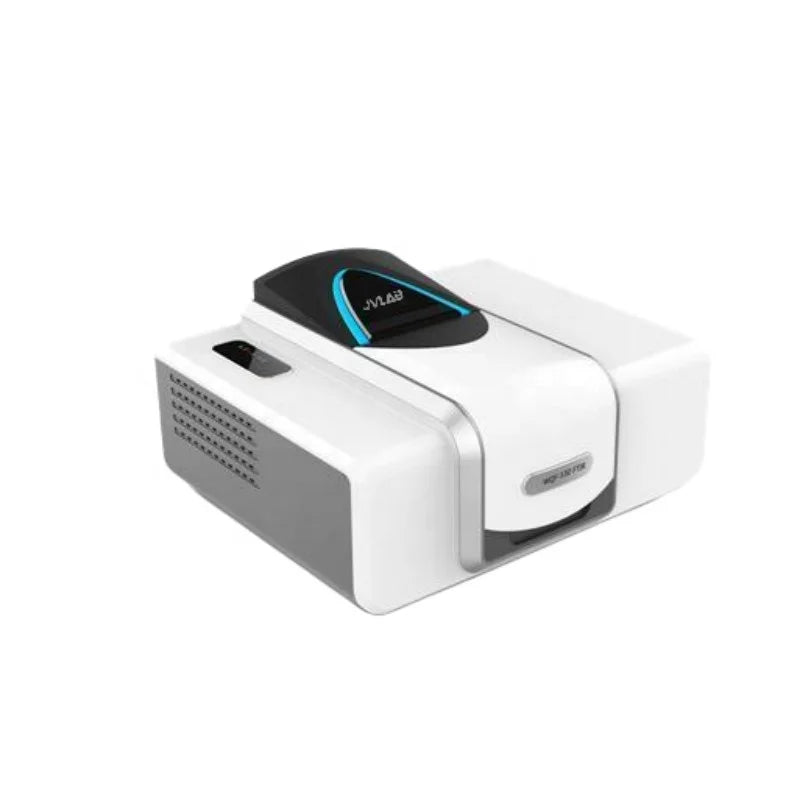

FTIR-530A CE-Certified FTIR Spectrometer for Material and Chemical Analysis

The FTIR-530A Fourier Transform Infrared Spectrometer is a high-performance analytical instrument engineered for research laboratories, quality control departments and industrial testing facilities. Developed using over 30 years of FTIR expertise, it delivers excellent sensitivity, stability and ease of operation while maintaining low running and maintenance costs.

Designed with fully independent intellectual property and built to meet CE requirements, the FTIR-530A provides reliable, repeatable results across a wide range of scientific and industrial applications.

Key Features

High-Sensitivity Optical System
Cube-corner Michelson interferometer combined with patented fixed mirror alignment technology ensures long-term stability without the need for complex dynamic alignment. Gold-coated mirrors maximise light throughput and enhance detection sensitivity.

Stable Modular Construction
A compact, cast-aluminium base with optimised heat dissipation improves resistance to vibration and thermal variation, ensuring consistent performance over extended operation.

Advanced Moisture Protection
Multi-sealed interferometer design with a large-capacity desiccant cartridge and real-time temperature and humidity monitoring protects the optical system from moisture, heat and chemical corrosion.

Integrated High-Performance Electronics
Features a high-sensitivity pyroelectric detector, dynamic gain amplification and 24-bit A/D conversion for precise, high-speed data acquisition and processing.

Low Electromagnetic Interference
Designed in accordance with CE and electromagnetic compatibility standards to minimise interference and ensure dependable operation.

High-Intensity IR Source
Long-life, air-cooled infrared source with optimised energy distribution in the fingerprint region, providing stable and uniform radiation.

Technical Specifications

• Wavenumber Range: 7800–350 cm⁻¹

• Resolution: 0.85 cm⁻¹

• Signal-to-Noise Ratio: >20,000:1 (RMS, 4 cm⁻¹ resolution, 1-minute scan)

• Wavenumber Accuracy: ±0.01 cm⁻¹

• Interferometer: Cube-corner Michelson

• Beam Splitter: Multilayer Ge-coated KBr

• Detector: High-sensitivity pyroelectric (standard); temperature-stabilised or MCT (optional)

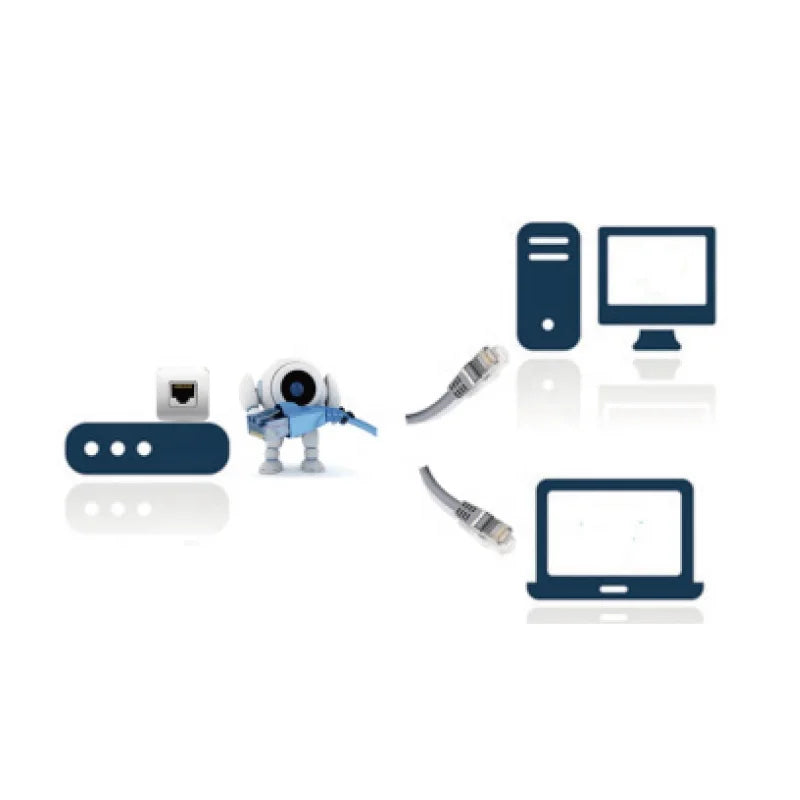

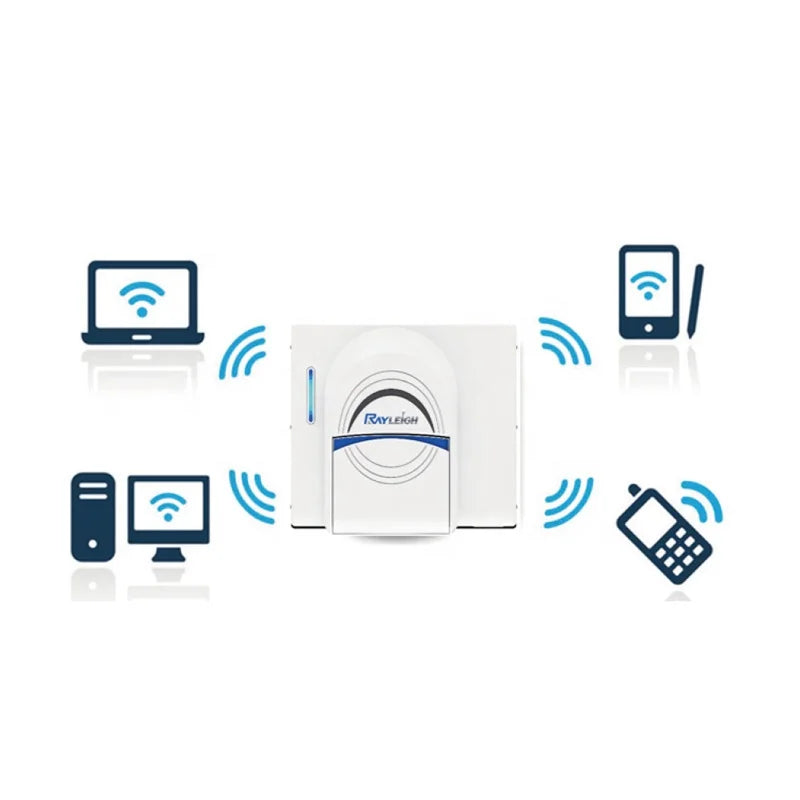

• Communication: Ethernet and Wi-Fi

• Software: MainFTOS Suite (Windows compatible)

• Power Supply: 110V / 220V, 50/60Hz

• Dimensions: 490 × 420 × 240 mm

• Weight: 23.2 kg

Optional 21 CFR Part 11 compliance and IQ/OQ/PQ documentation are available.

Sampling Flexibility

The spacious sample compartment supports a wide range of accessories, including:

• ATR (single and multi-reflection)

• Diffuse and specular reflection modules

• Liquid cells (fixed and demountable)

• Gas cells

• Transmission sample holders

Suitable for solid, liquid and gas analysis across pharmaceutical, environmental, petrochemical, food, academic and materials science applications.

About the Supplier

Supplied by JVLAB, an established laboratory solutions provider offering a broad portfolio of analytical and general laboratory instruments. The company operates under ISO9001 and ISO13485 quality management systems and provides OEM and ODM services to meet specific customer requirements.

For bulk orders, custom configurations or technical enquiries, please contact us for tailored support and pricing.
