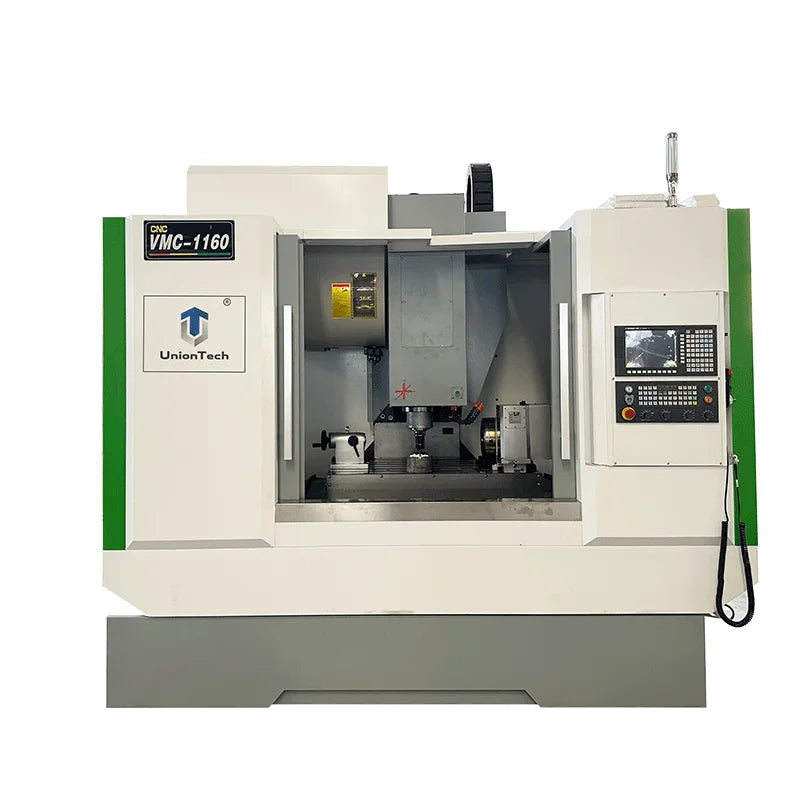

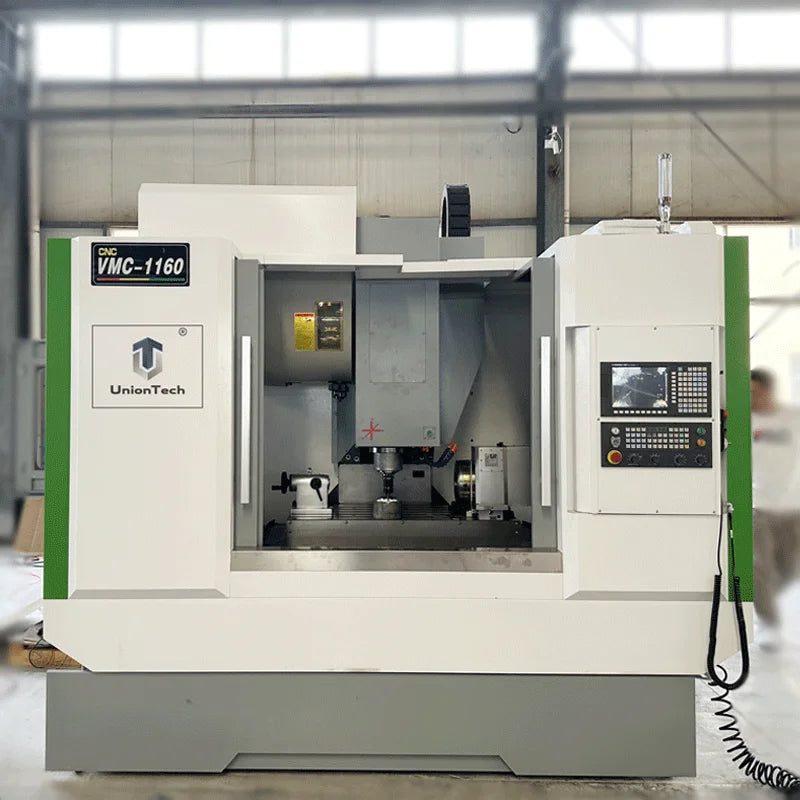

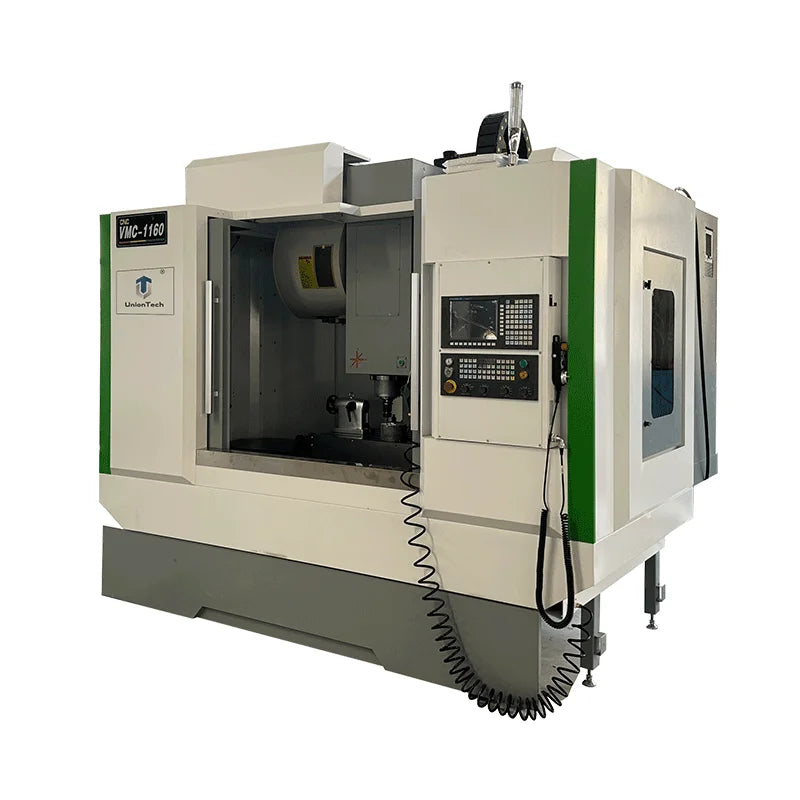

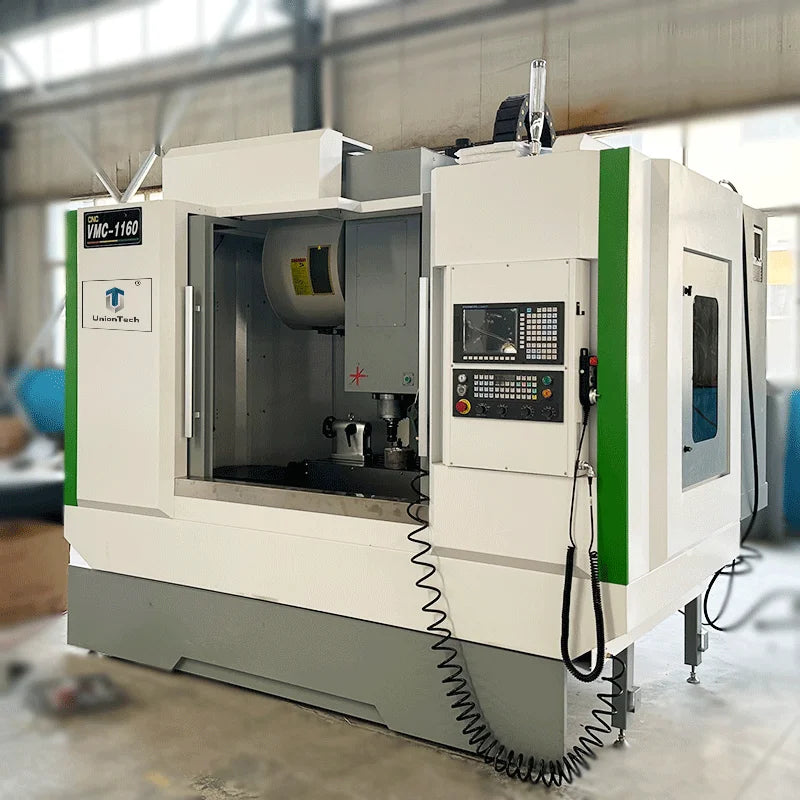

Automatic CNC Vertical Machining Centre VMC 1160 – Single Spindle, GSK Controller

The UnionTech VMC1160 is a heavy-duty vertical CNC milling machine engineered for precision metal processing and high-efficiency production. Designed for demanding industrial environments, this machine combines rigid construction, advanced servo control and fast tool-changing capability to deliver consistent, accurate results across a wide range of applications.

Ideal for mould manufacturing, precision engineering, fabrication and general machining, the VMC1160 provides the strength and reliability required for continuous operation.

Key Features

• Machine Type: Vertical CNC Milling Machine
• Model: VMC1160
• Brand: UnionTech
• Machining Capacity: Heavy Duty

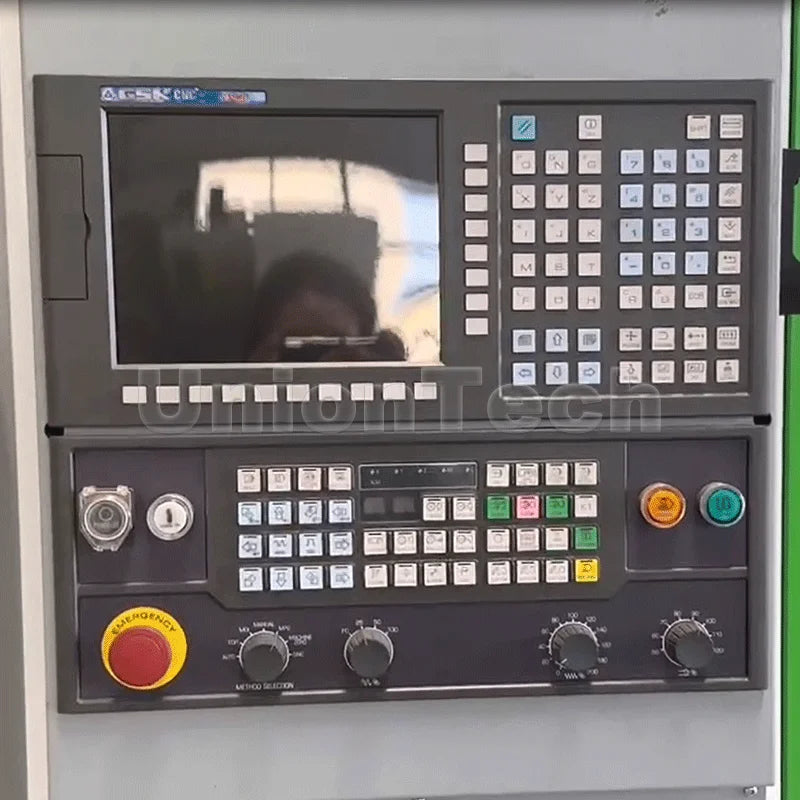

• Control System: GSK (SIEMENS controller option)
• Motor & Driver: SIEMENS Servo Motor System
• Spindles: Single
• Spindle Taper: BT40
• Tool Magazine Capacity: 24 tools
• Minimum Tool Change Time: 2 seconds
• Voltage: 220V / 380V
• Operation: Automatic

Working Area & Travel

• Table Size: 1200 × 600 mm
• Max. Table Load: 1000 kg
• X-Axis Travel: 1000 mm
• Y-Axis Travel: 600 mm
• Z-Axis Travel: 600 mm
• Working Area: 1100 × 600 × 600 mm

The generous table size and high load capacity make this model suitable for machining larger and heavier components with stability.

Spindle & Performance

• Spindle Speed Range: 0–8000 rpm
• Rapid Feed Speed: 1–6000 mm/min
• Z-Axis Transmission: TBI Ball Screw

The high-speed spindle and precision ball screw transmission ensure smooth movement, reduced backlash and efficient material removal.

Accuracy & Precision

• Positioning Accuracy: 0.0075 mm
• Repeatability: 0.005 mm
• Overall Precision: 0.0075 mm

These tolerances support high-quality surface finishes and reliable repeat production.

Build & Dimensions

• Machine Weight: 7 tonnes
• Dimensions (L × W × H): 1100 × 600 × 600 mm
• Place of Origin: Shandong

The robust frame construction enhances rigidity, reduces vibration and improves long-term machining stability.

Service & Support

• Warranty: 13 months
• After-Sales Service: 12 months support provided
• Machinery Test Report: Provided
• Video Outgoing Inspection: Provided

The UnionTech VMC1160 Vertical CNC Milling Machine is a powerful and precise solution for manufacturers seeking dependable performance, automated efficiency and advanced CNC control. Built for heavy-duty machining, it offers the capability and durability required for professional industrial production.
