STARCRAFT ES Series Analytical Balance

0.1 mg Precision | Internal or External Calibration | RS232 Output

The ES Series Analytical Balance is a high-precision laboratory instrument designed for applications requiring 0.1 mg readability and exceptional measurement stability. Available in 120 g and 220 g capacities, this balance supports both internal automatic calibration and external calibration models, ensuring accuracy across demanding analytical environments.

Engineered with a precision load cell system and fast stabilisation time (≤ 2.5 seconds), the ES Series is suitable for research laboratories, pharmaceutical environments, academic institutions, and quality control facilities.

Key Features

• 0.1 mg Readability (0.0001 g)
  Delivers high-resolution measurements for analytical applications.

• Automatic Internal Calibration (A Models)
  Ensures consistent accuracy without manual intervention.

• External Calibration Option
  Available for laboratories preferring manual calibration protocols.

• Fast Stabilisation Time (≤ 2.5 s)
  Improves workflow efficiency.

• High Repeatability (±0.2 mg)
  Reliable and consistent measurement performance.

• RS232 Interface
  Enables data transfer to printers, PCs, or laboratory management systems.

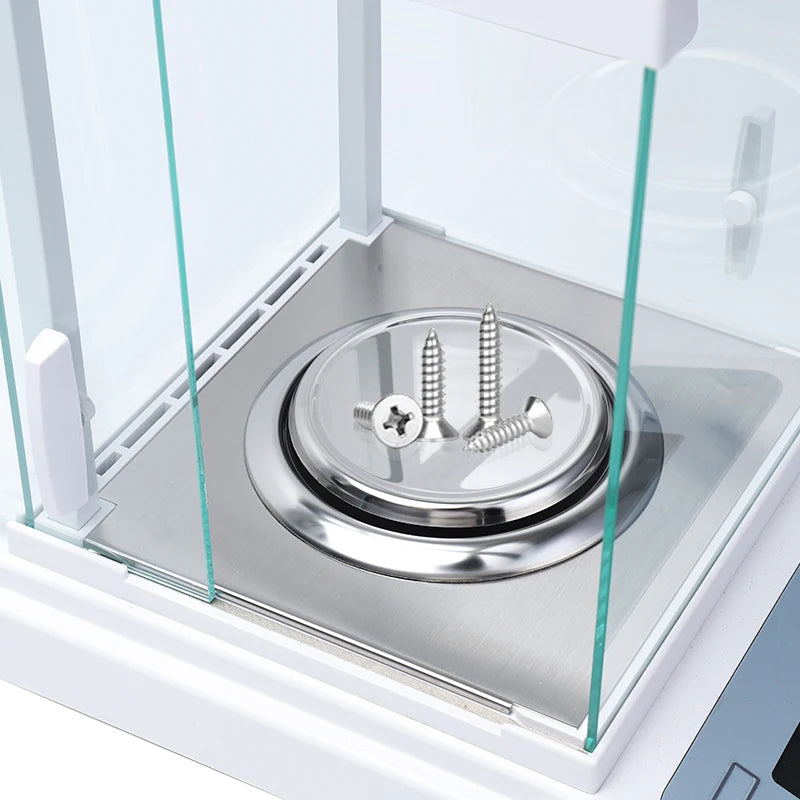

• 304 Stainless Steel Weighing Pan
  Durable, corrosion-resistant, and easy to clean.

• CE Certified
  Suitable for regulated laboratory environments.

Available Models

Technical Specifications

• Capacity Range: 120 g / 220 g

• Readability: 0.1 mg

• Repeatability: ±0.2 mg

• Linearity: ±0.2 mg

• Stability Time: ≤ 2.5 seconds

• Operating Temperature: 10–30 °C

• Pan Size: 90 mm diameter

• Dimensions: 230 × 310 × 330 mm

• Warm-Up Time: 20–30 minutes

• Output Interface: RS232

• Baud Rate: 1200 / 2400 / 4800 / 9600

• Pan Material: SS 304

• Housing Material: Aluminium

• Certification: CE

• Warranty: 2 years

Typical Applications

• Pharmaceutical analysis

• Chemical formulation

• Academic laboratory research

• Quality control and inspection

• Gravimetric analysis

• Sample preparation

Summary

The STARCRAFT ES Series Analytical Balance provides dependable 0.1 mg precision with rapid stabilisation and professional data connectivity. With both internal and external calibration options available, it offers flexibility for laboratories operating under standard or regulated procedures.

An ideal solution for laboratories requiring high-accuracy gravimetric measurement with reliable long-term stability.
